Trip Amplifiers
Trip Amplifier , also commonly referred to as intrinsically safe galvanic isolators or intrinsically safe barriers; are devices used to interface hazardous area process signals with safe area control equipment. Our selection of I.S. interfaces are designed to comply with Europian standards and directives including ATEX, CIMFR,BEURO VEITAS.
Trip Amplifiers

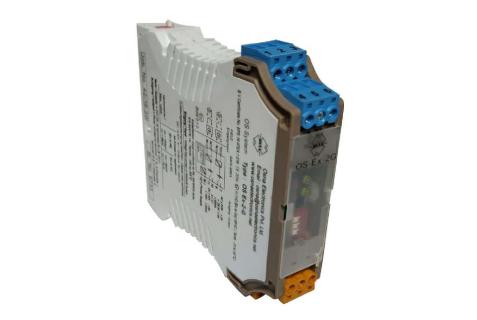

OS-Ex-2G(1G)
1-channel I/P and 1 relay contact outputs isolator (DC Trip Amplifier) 24 V DC supply, Adjustable energized/de-energized.

OS-Ex-2G
2-channel I/P and 2 relay contact outputs isolator (DC Trip Amplifier) 24 V DC supply, Adjustable energized/de-energized.

OS-Ex-2G(1W)
1-channel I/P and 1 relay contact outputs isolator (DC Trip Amplifier) 110/220 V AC supply, Adjustable energized/de-energized.

OS-Ex-2G(W)
2-channel I/P and 2 relay contact outputs isolator (DC Trip Amplifier) 110/220V AC supply, Adjustable energized/de-energized.

OS-Ex-2G(1 OT)
1-channel I /P and 1 channel Transistor outputs isolator (DC Trip Amplifier) 24 V DC supply Adjustable energized/de-energized.

OS-Ex-2G(OT)
2-channel I /P and 2 channel Transistor outputs isolator (DC Trip Amplifier) 24 V DC supply Adjustable energized/de-energized.

OS-Ex-2G(1W OT)
1-channel I /P and 1 channel Transistor outputs isolator (DC Trip Amplifier110/220 VAC supply, Adjustable energized/de-energized.

OS-Ex-2G(W OT)
2-channel I /P and 2 channel Transistor outputs isolator (DC Trip Amplifier) 110/220VAC supply, Adjustable energized/de-energized.

OS-Ex-GR-O2
1-channel I/P and 1 relay contact output (DC Operated RTD Trip Amplifier) 24 V DC supply, Output relay remains de-energized when temperature is below set point. Relay energizes when temperature reaches set point.

OS-Ex-GS-O2
1-channel I/P and 1 relay contact output (To Monitor the value of a 4-20 mA or 0-10VDC Signal by allowing a relay to operate at a present value between Zero & span) 24 V DC supply, Output relay remains de-energized when
